60L Oxygen Generator For Medical Use

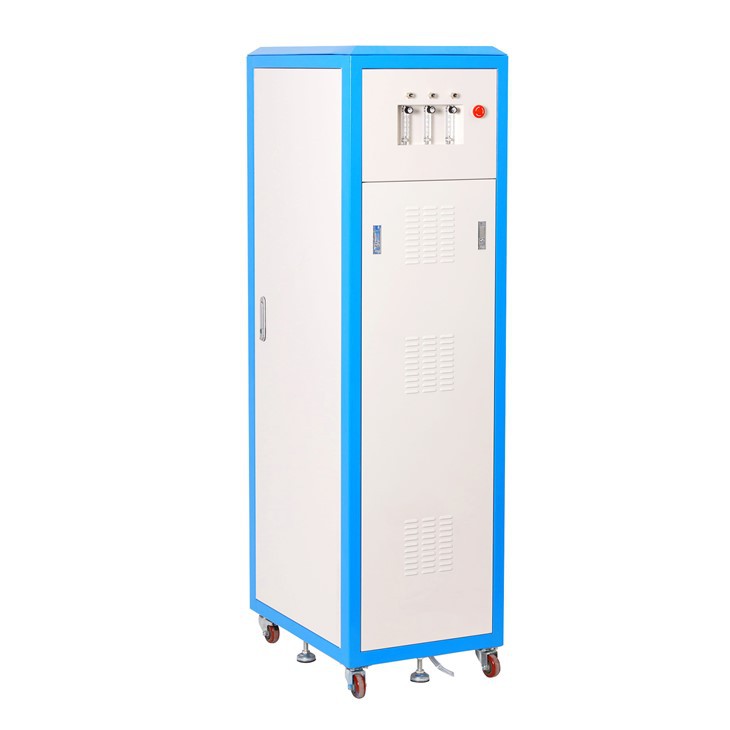

60L Oxygen Generator for Medical use JAY-60
60Lpm oxygen concentrator can connect with pipe to supply oxygen for patient beds directly.
This the medical grade oxygen concentrator that can be used in hospital and supply oxygen for 12 patients at the same time. That can support for 24*365 operation and the oxygen flow is always enough with high purity 90-96%, outlet pressure 0.04-0.07Mpa.
Model | JAY-60 |
Flow rate | 0-60L/min |
Outlet pressure | 0.04-0.07Mpa |
Noise level | ≤60dB |
Power Supply | AC220V (±10%), 50/60±1Hz; AC110V (±10%), 50/60Hz (±1Hz) |
Power consumption | ≤3300W |
Alarm | Power failure alarm; high/low pressure alarm |
Siz | 760×540×2000mm |
Net weight | 230kgs |
Longfian large flow oxygen concentrator 20-60LPM, they are with outlet pressure 0.04-0.07Mpa that can supply oxygen to patient beds directly, or they can connect with booster to increase the outlet pressure as 0.4Mpa that can supply oxygen to anesthesia machine or ventilator.
Longfian innovative oxygen generating system is designed for hospitals and clinics with 5-100 beds. The system includes PSA oxygen generator, buffer tank, booster pump, high pressure oxygen compressor, etc. It represents a higher medical standard and true sense of innovation.
Application:
For hospital with 5-100 beds
For anaesthesia machine and ventilator in operating room and ICU
For high pressure cylinder filling plant
Package size:86*63*212cm, and the gross weight 294kgs
It will be packaged by wooden-case that will protect machines well!
