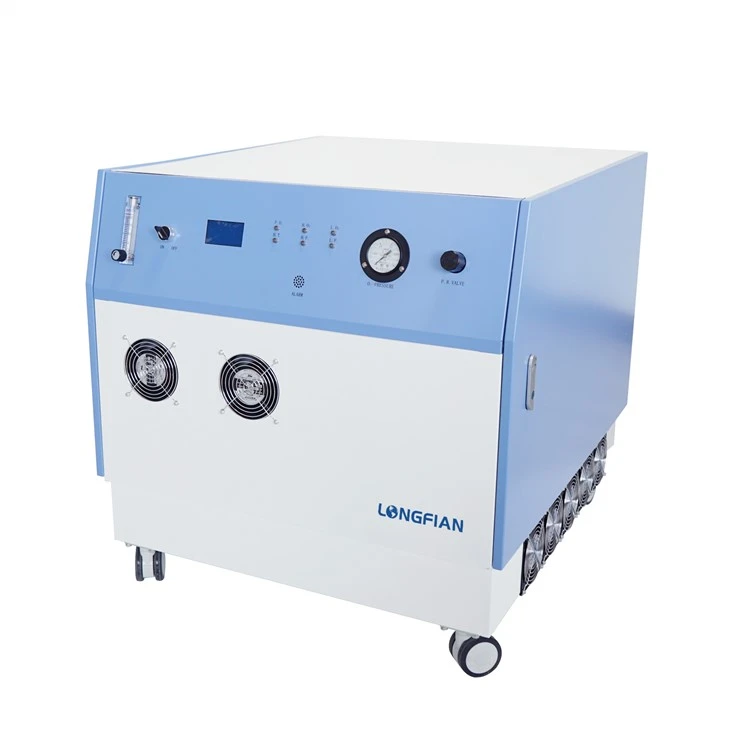

High Pressure 20L Oxygen Generator With Airdryer
video
High Pressure 20L Oxygen Generator With Airdryer

High Pressure 20L Oxygen Generator With Airdryer

Flow rate:1-20LPM
Oxygen purity:93±3%
Outlet pressure:0.14-0.4MPA (20-60Psi)
Noise level:≤60db
Power consumption:≤2000W
Size:880x836x800mm
Net weight:118kgs
LCD display:Switch times, operating pressure, present working time, accumulated working time
Send Inquiry
Add To Inquiry
Product Details ofHigh Pressure 20L Oxygen Generator With Airdryer

If you're interested in the high pressure 20l oxygen generator with airdryer, please feel free to buy the quality equipment made in China from our factory. Longfian Scitech Co., Ltd. is one of the world's leading manufacturers and suppliers in this field, also offers the wholesale service and the price list consultation.



High Pressure 20L Oxygen Generator With Airdryer

20L()_02-_03

Model
JAY-10-4.0
JAY-15-4.0
JAY-20-4.0
Flow rate
1-10LPM
1-15LPM
1-20LPM
Oxygen purity
93±3%
Outlet pressure
0.14-0.4MPA (20-60Psi)
Noise level
≤50db
≤60db
≤60db
Power consumption
≤1250W
≤2000W
≤2000W
LCD display
Switch times, operating pressure, present working time, accumulated working time
Alarm
Low purity alarm ,High&low pressure alarm, Low oxygen concentration alarm
Size
910x450x720mm
880x836x800mm
880x836x800mm
Net weight
90kgs
118kgs
118kgs

20L()_04

High Pressure 20L Oxygen Generator With Airdryer

Features:

  1. Thomas compressor

  2. High efficiency three-tower adsorption system more durable

  3. Pressure gauge on site to adjust flexibly if necessary

  4. Small and compact, easy to move for any emergency.

  5. Automatic dehydrator/refrigerated air dryer.

-_05-_0620L()_07

Application:

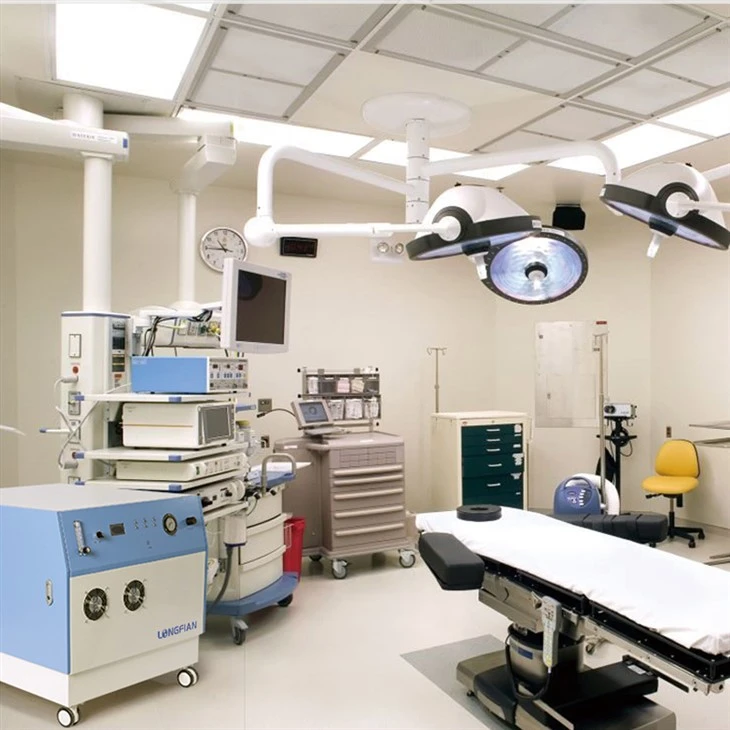

  1. Oxygen for medical: connect with ventilator or anesthesia machine to use, also can be the central oxygen supply system for small hospital or clinic

  2. Supply oxygen for animals: used at veterinary hospital or clinic, zoo. To supply oxygen for pet cage, vet ventilator and anesthesia machine, or pet hyperbaric oxygen chamber.

  3. Oxygen for industrial: for welding, glass cutting or oxygen supply for ozone producing

  4. Oxygen for fish farming, aquaculture: supply oxygen to fish and provide sufficient oxygen to the nitrifying bacteria cultured in the filter material

  5. Oxygen therapy: provide oxygen for hyperbaric oxygen chamber, used for rescue and treatment of ischemia, anoxia and other disease

 (2)



Who We Are

Longfian, a leading manufacturer, specialized in oxygen solution for 20 years, is professionally dedicated to R&D, production and marketing of series oxygen concentrators which refer to medical oxygen therapy, indoor oxygen supply, plateau simulation, industrial, veterinary and other fields. We are headquartered in Baoding China covering an area of 20000 square meters, with 150 employees and annual production capacity of 600,000 units.



What We Innovated

Longfian has always been a leader in innovative oxygen solutions. We have developed the IOT administration system for patient oxygen inhaling datas, applied both in hospitals and community medical centers. We devoted ourselves to noise levels and successfully reduced it to 33dB. We are not only leading in research and development, but also possess of the world- level testing equipments, such as Acoustics Test Lab, the Test Cabinet for Temperature and Humidity, Altitude Simulation Test Cabinet and Drop Test Bench.



Why Us

All of our products comply with ISO13485 and some models got the certificates of CE. With years of experiences, we have successfully beencawarded over 30 patents of invention and design, completed registration of more than 45 countries for import permits. Till now, our products cover more than 120 countries around the world.LONGFIAN has been appointed as the qualified supplier to the United Nations Organization such as WHO, UNICEF, UNOPS, UNDP and so on.



Mission and Vision

we will continue adhering to our mission: "Protecting the beautiful homeland of humanity by feeding oxygen to all life on the earth",achieving our vision: "Empower oxygen to various demand of human beings".

-_11



JAY-10-4_12

-_14

Why choose us?

1. QUALITY
QA and QC covered each step of production and process in the whole factory, which make strict control of each product quality to ensure the finished products 100% qualified. The rigorous and complete QA system has enabled LONGFIAN to obtain international certificates such as CE, FDA, etc.

2. AUTHORITATIVE RECOGNITION
The unanimous choice of world-renowned NGO and governments, which witness Longfian quality and the leading position in the global market.

3. PRODUCTION CAPACITY
Covering an area of 40,000 square meters,annual production 1,500,000 units,to ensure each order delivered on time.

4. TECHNOCOLOGY
With 25 years of experience accumulation and market exploration, we have successfully obtained 28 patents for oxygen concentrators.
The technical team will always maintain innovation and independent research and development, and strive to be the vane leading the oxygen concentrator industries.

5. CERTIFICATES
We have obtained 36 international certifications and market access permits including EU CE,
EU FSC, U.S. FDA,Brazil ANVISA, Colombia INVIMA, Mexico COFEPRIS, Saudi Arab SFDA, Russian GOST, Uzbekistan MOH, Ethiopia FMHACA, Nigeria PC ...With all the certifications, we can freely sell to every corner of the world.
